PANEL ANCHORING SYSTEM

Suspensions

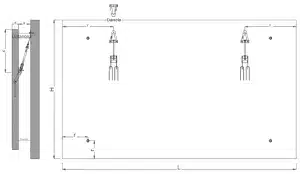

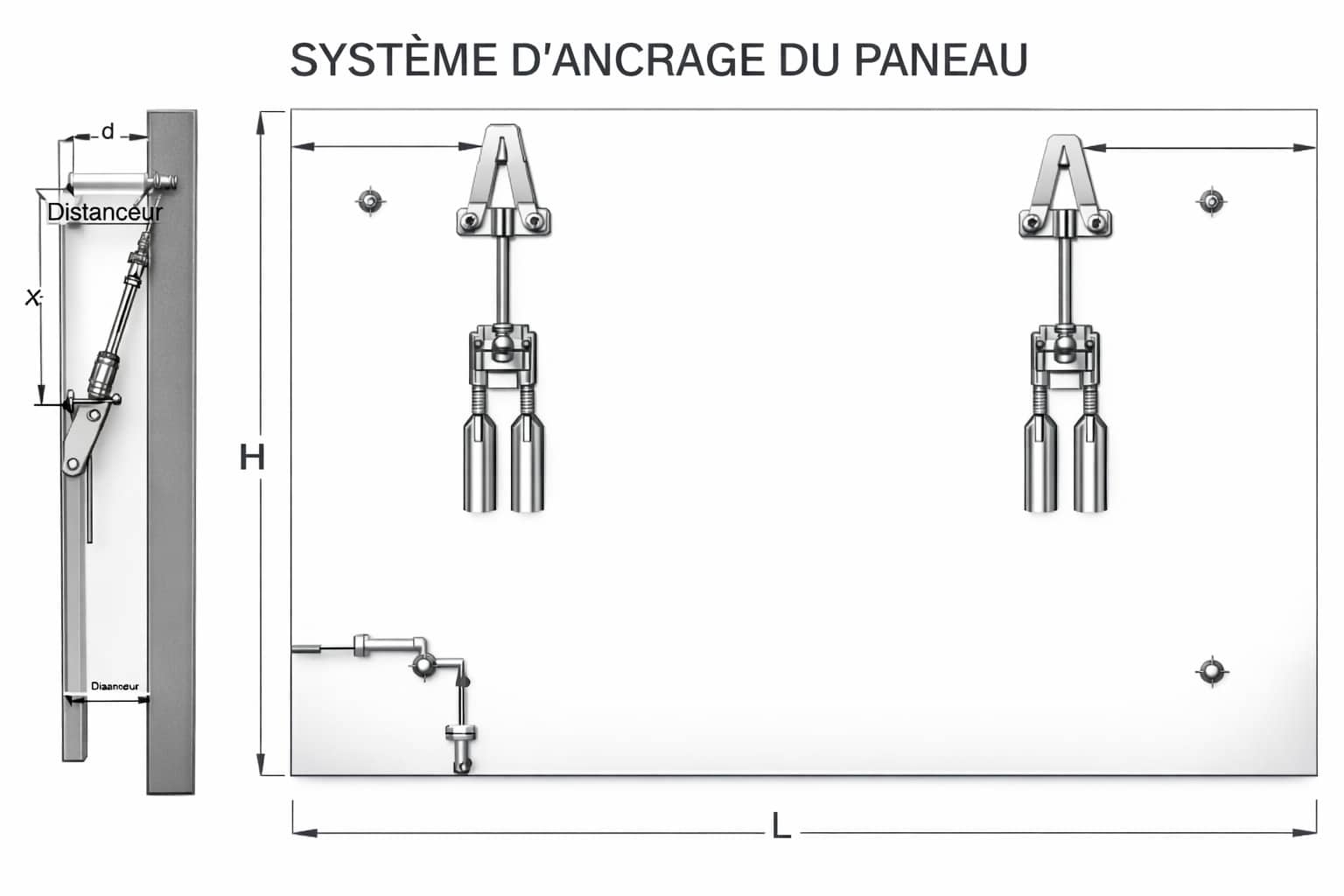

The anchoring system of the panel consists of two parts:

In the lower section: This is the part embedded in the formwork of the prefabricated panel, where the orbital brackets and reinforcement bars are located.
In the upper section: there are the Daniellas. These two parts are connected through a bolted connection by tension bars.
